Digital Engineering - Assignment 1

Team Members

• أحمد علي أحمد عثمان - 20240592
• أدم أحمد شوقي محمد - 20240594
• اسلام محمد سيد محمد - 20240476
• اشرف ابراهيم محمد ابراهيم - 20240465

Logic Formula

$$\bar{A}\cdot \bar{B}\cdot C+A\cdot B$$

Truth Table

$A$	$B$	$C$	$\bar{A}$	$\bar{B}$	$\bar{A}\cdot \bar{B}\cdot C$	$A\cdot B$	$\bar{A}\cdot \bar{B}\cdot C+A\cdot B$
0	0	0	1	1	0	0	0
0	0	1	1	1	1	0	1
0	1	0	1	0	0	0	0
0	1	1	1	0	0	0	0
1	0	0	0	1	0	0	0
1	0	1	0	1	0	0	0
1	1	0	0	0	0	1	1
1	1	1	0	0	0	1	1

Logic Gate Design

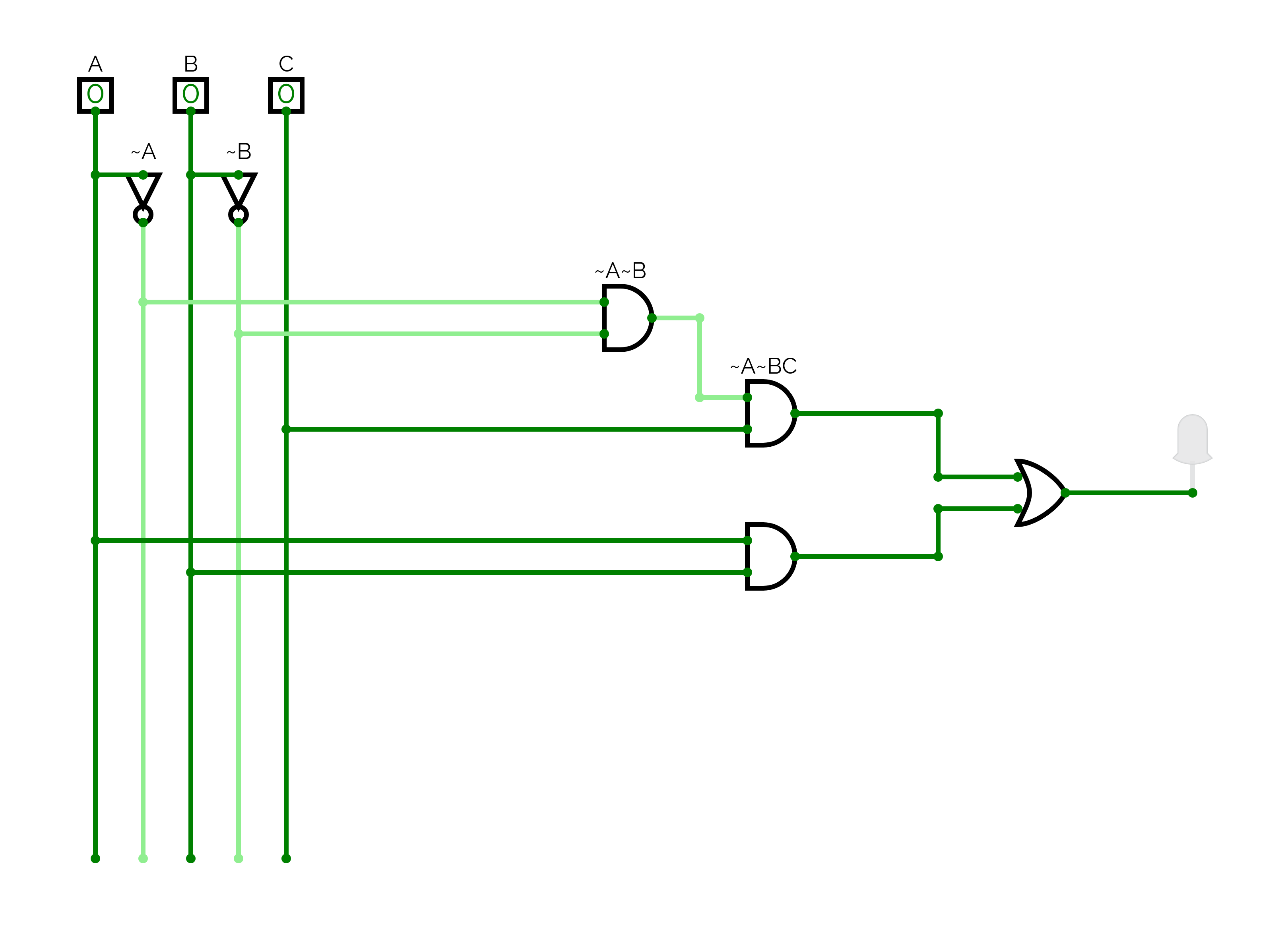

Normal Version

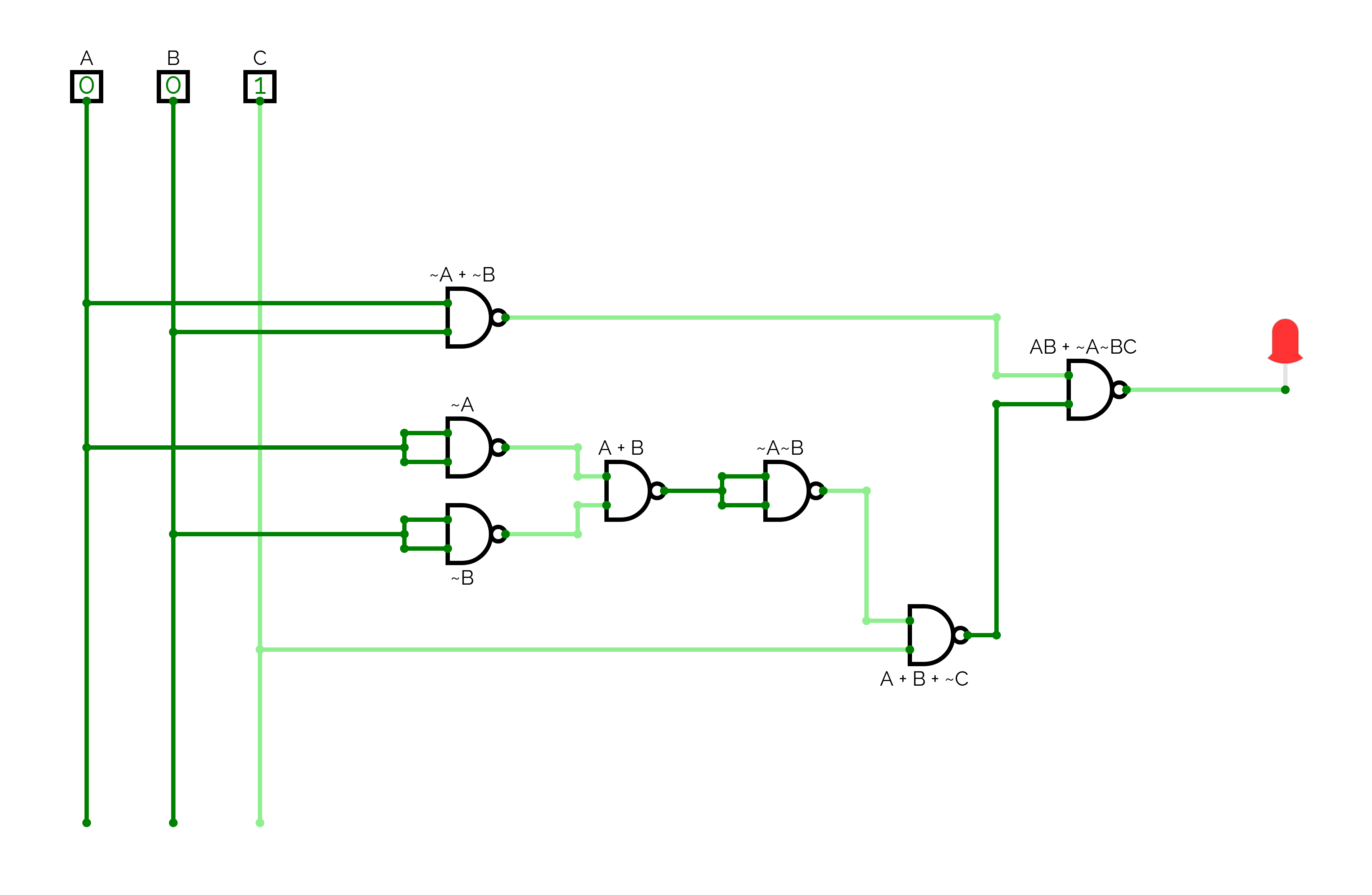

NAND-only Version

TinkerCAD Circuit Design

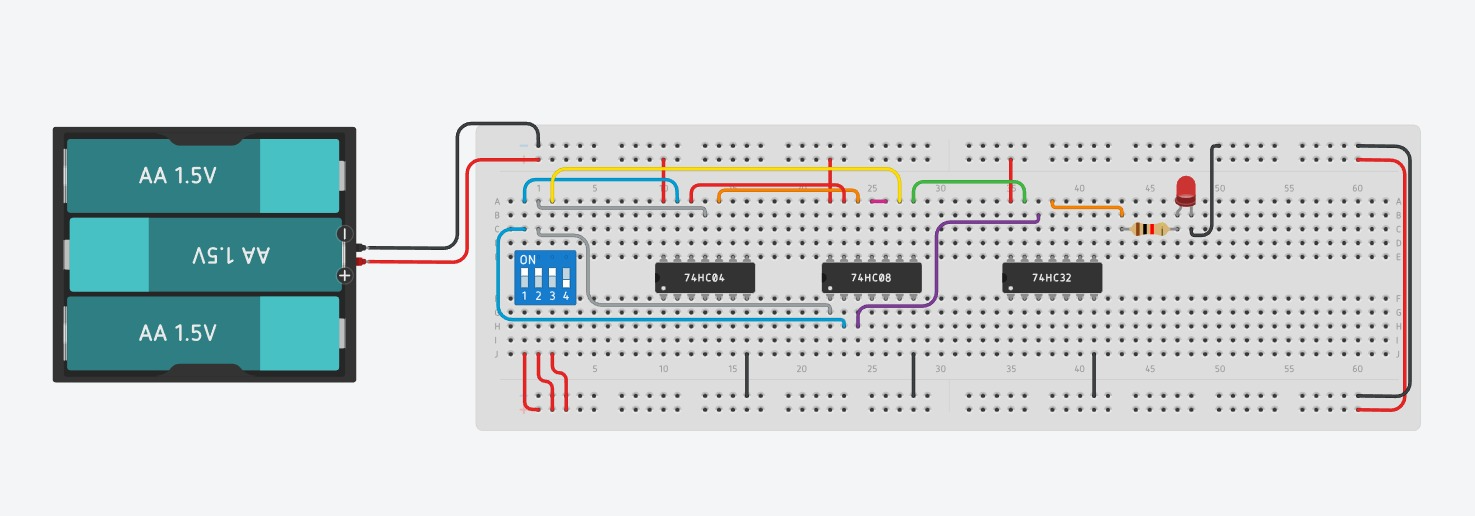

Normal Version

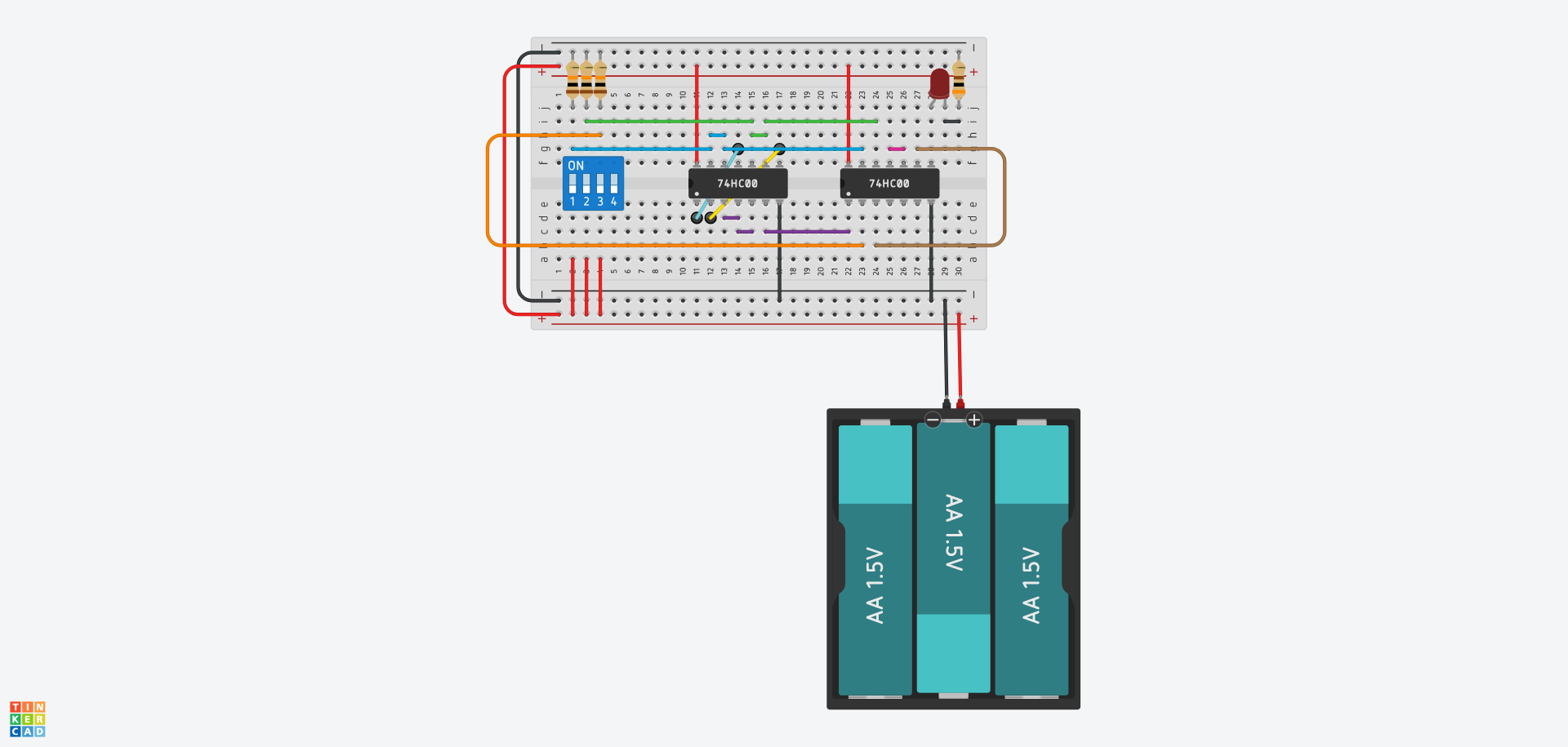

NAND-only Version
